Fitted with a technology that is unique in the world, the Catherm® is a radiant panel that emits infrared and conventional energy. These energies are generated through catalytic combustion of natural gas or propane. Thanks to its special and innovative design, Catherm® achieves exceptional radiation efficiency.Catherm® starts in 1 minute or less without pre-heating time. Catherm® provides all Thermoractors® catalytic safety features.
Range: Catherm® 6P, 9P ,12P
Power: 41000 to 82000 BTU
Gas: Natural gas and propane
Special air-gas injection unit
Efficient: thanks to enhanced energy transfer
Economical: substantially reduces electricity bill
Innovative: patented and optimized catalyst for intensive radiation flow
Sustainable: optimised ceramic catalytic support to maintain constant performance
Responsive: quick start in less than one minute without pre-heating time
VERY HIGH POWER DENSITY IDEAL FOR HEAVY METAL PART POWDER COATING
Max. power: 41000 BTU
Slowed power: 21500 BTU
Natural gas flow: 1,21 – 0,60 m3/h
Propane flow: 0,96 – 0,48 m3/h
Weight : 60 LB
Voltage : 220 V
Electrical Power: 100 W
Size : 1060 x 295 mm
Radiating surface : 0,12 m²
Embedment : 1022 x 248 mm
Max. power : 61500 BTU
Slowed power : 30750 BTU
Natural gas flow : 1,81 – 0,91 m3/h
Propane flow : 1,44 – 0,72 m3/h
Weight : 80 LB
Voltage: 220 V.
Electrical Power: 100 W
Size: 1510 x 295 mm
Radiating surface: 0,19 m²
Embedment : 1472 x 248 mm
Max. power: 82000 BTU
Slowed power: 41000 BTU
Natural gas flow: 2,42 – 1,21 m3/h
Propane flow: 1,92 – 0,96 m3/h
Weight: 100 lb
Voltage : 220 V.
Electrical Power : 100 W
Size : 1965 x 295 mm
Radiating surface : 0,25 m²
Embedment: 1927 x 248 mm

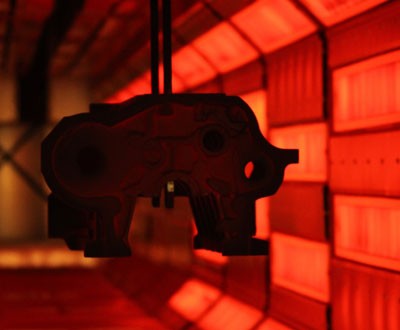

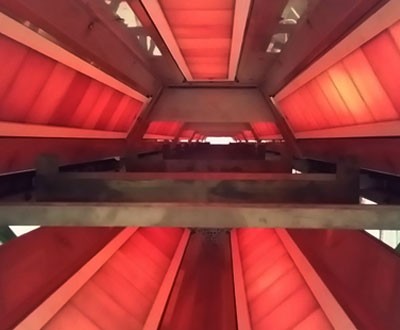

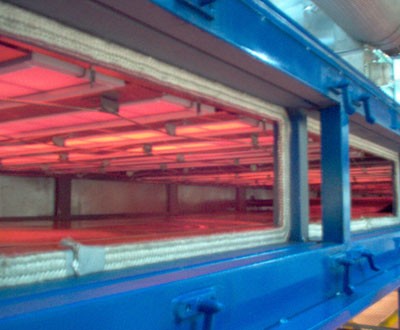

Applications for industrial drying ovens.
| Applications for industrial drying ovens |
|---|
| Massive parts (truck engines, frames,…,) |
| Coil coating |
| Powder paint curing |
